1. Can be installed by one individual as the brace system is an assembly system.
2. Kicker position can be adjusted to fit to site conditions.
3. Suitable for one-side face wall sections where in-corners are created.

(Unit : mm)
Items Dimension

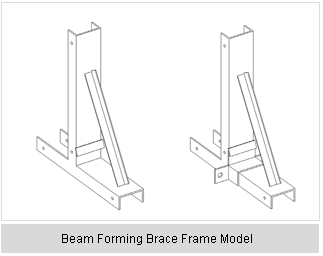

Beam Form Brace Frame 490(W)ек490(H)
Beam Form Brace Frame 450(W)ек450(H)
Beam Form Brace Frame 500(W)ек550(H)
Beam Form Brace Frame 490(W)ек490(H)

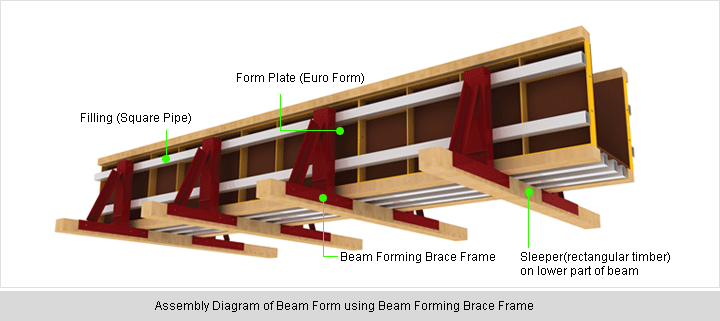

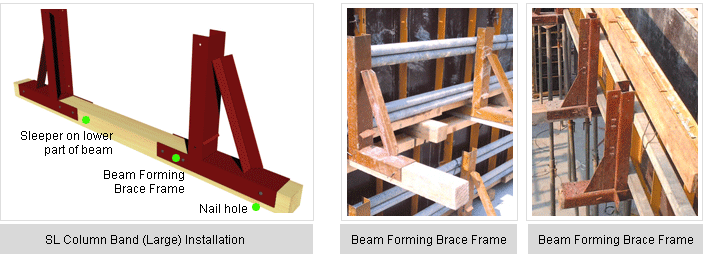

Build beam form using Euro form or plywood on the ground. Place Beam Forming Brace Frame on sleeper on the lower portion of beam. Nail to beam side form.
For large beams, insert a square pipe (sleeper) to the Beam Forming Brace Frame and nail in place to support beam form.

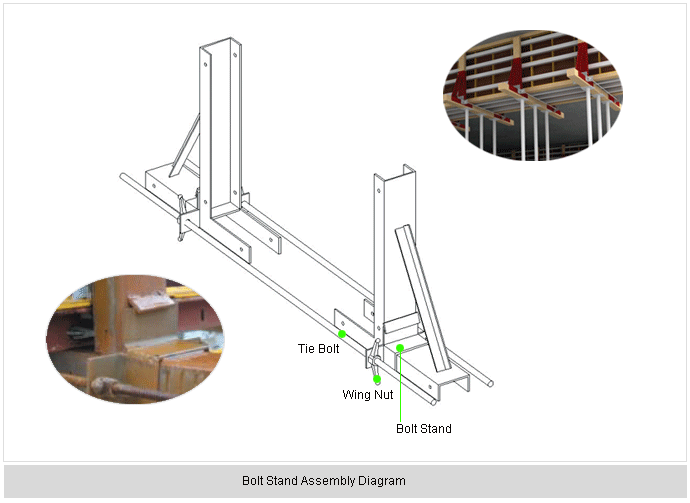

Support the entire side of beam by inserting a rectangular timber into Beam Forming Brace Frame as the deeper beam has a higher concrete lateral pressure working on the beam side. Prevent lateral pressure separation by fastening bolts.
