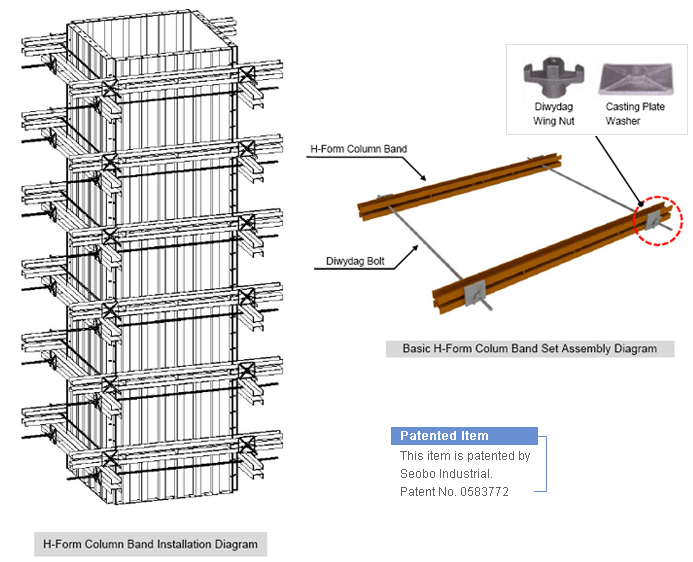

The H-form column band is a reinforcement of the steel column form, which sets channel-shaped steel with remarkable structural performance symmetrically facing each other. This column band is widely used in construction sites because of its superior support for lateral pressure and easy application.

1. Easy, rapid installation due to a simple method is user-friendly.
2. No need for additional reinforcements due to superior structural performance.
3. Easy installation suitable for each column dimension.
4. Good exclusive applicability. Durable and will not easily distort.



(Unit : mm)
Items Dimension
H-Form Column Band 75(W)オ 600(L)
H-Form Column Band 75(W)オ 900(L)
H-Form Column Band 75(W)オ1200(L)
H-Form Column Band 75(W)オ1500(L)
H-Form Column Band 75(W)オ1650(L)
H-Form Column Band 75(W)オ1800(L)
H-Form Column Band 75(W)オ2000(L)
H-Form Column Band 75(W)オ2400(L)
H-Form Column Band 100(W)オ1500(L)
H-Form Column Band 100(W)オ1650(L)
H-Form Column Band 100(W)オ1800(L)
H-Form Column Band 100(W)オ2000(L)
H-Form Column Band 100(W)オ2400(L)
H-Form Column Band 100(W)オ3000(L)
H-Form Column Band 125(W)オ1800(L)
H-Form Column Band 125(W)オ2000(L)
H-Form Column Band 125(W)オ2400(L)
H-Form Column Band 125(W)オ3000(L)
H-Form Column Band 150(W)オ1800(L)
H-Form Column Band 150(W)オ2000(L)
H-Form Column Band 150(W)オ2400(L)
H-Form Column Band 17mm
Diwydag Wing Nut 90オ130
Diwydag Bolt 17mmオ1500(L)
Diwydag Bolt 17mmオ2000(L)
Diwydag Bolt 17mmオ2500(L)
