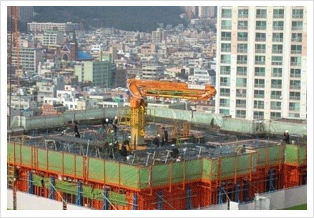

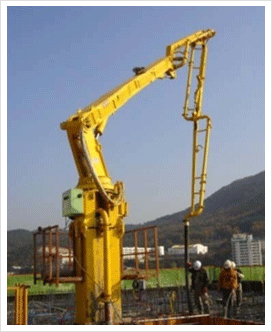

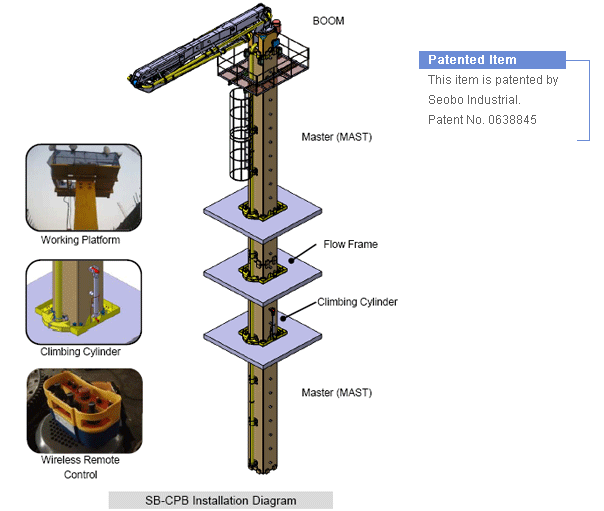

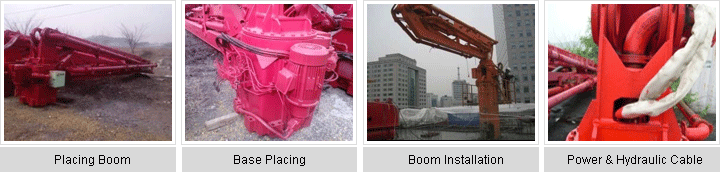

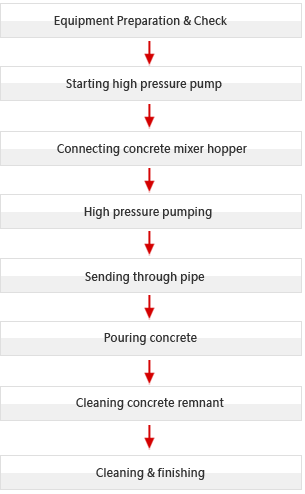

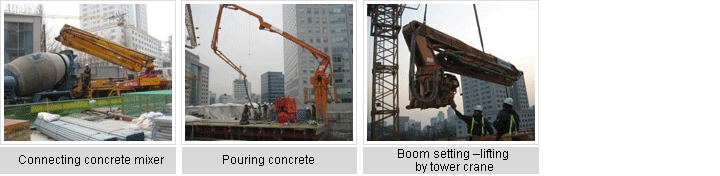

The CPB is used for pouring concrete in high building construction. It pours concrete pumped up through a pipe at the exact spot using a boom connected to a master. |
| |
 |
1. Reduction of expensive equipment rental because the SB-CPB can pour concrete by separating the placing boom from the master and moving it to a master in another building to reduce the number of CPBs required for construction.
2. While existing CPBs rotate up to 370¡Æ, the SB-CPB24 has no rotational limit to facilitate the pouring of concrete.
3. Stairs or cores can be easily built because placing boom has multiple articulated joints to pour concrete accurately at the desired place.
4. Easy operation and safe work via remote control.
5. Best quality of concrete thanks to stable pouring rate. |
| |
|
 |
|
 |
| |
 |
|
|
| |
 |
| |

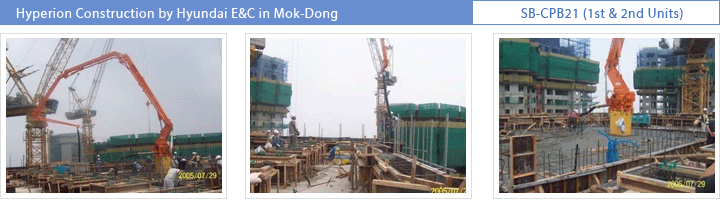

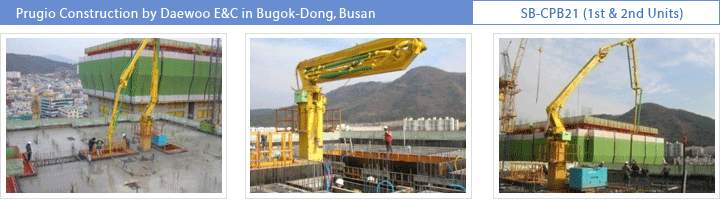

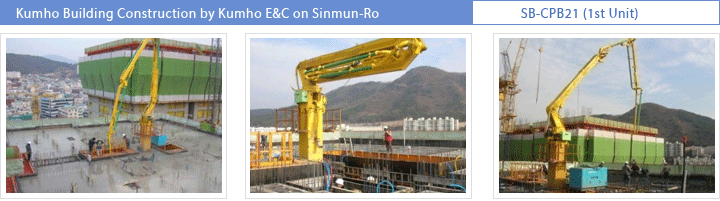

SB-CPB21 (1st) |

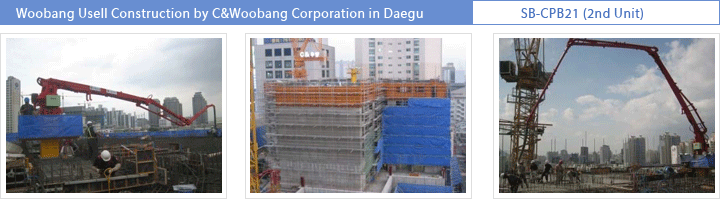

SB-CPB21 (2nd) |
SB-CPB24 |
SB-FB21 |
| Weight |
7,300 kgf |
7,400 kgf |
12,400 kgf |
7,000 kgf |

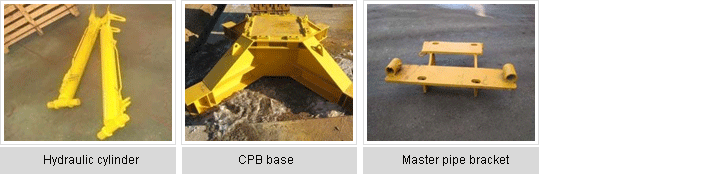

Boom Base
Weight |
3,800 kgf |
4,000 kgf |
5,600 kgf |
4,000 kgf |

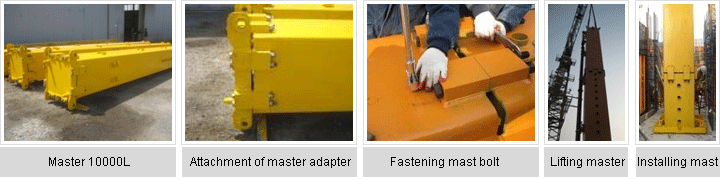

| Mast Weight |
Master (4m): 1,400 kgf
Master (6m): 2,100 kgf |
Master (10m): 3,400 kgf |
Master (10m): 3,400 kgf
(Connection of 2 units) |
Master (6m): 1,500 kgf
Master (6m): 1,500 kgf |

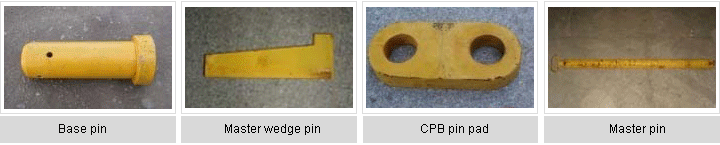

| Master Type |
Square Tube
(750 x 750) |
Square Tube
(750 x 750) |
Square Tube
(750 x 750) |
Circular Tube
(¥Õ600) |

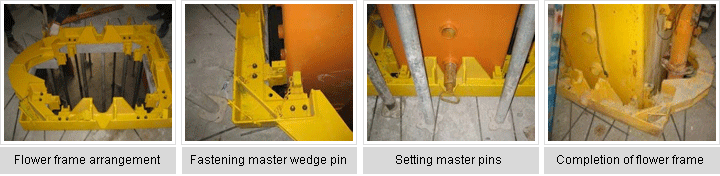

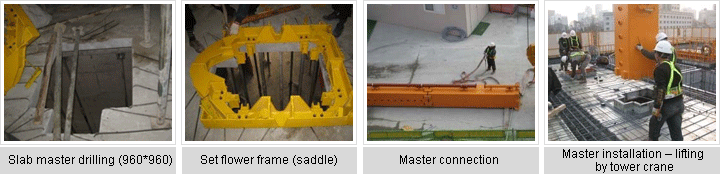

| Slab Drilling |
950 x 950
(Drilling in connection
with piping hole) |
950 x 950
(Drilling in connection
with
piping hole) |
950 x 950
(Drilling in connection
with piping
hole) |
800 x 800
(Drilling separately
from piping
hole) |
| Steps of Boom |
4 steps |
3 steps |
3 steps |
2 steps |
| End Hose |
3 m |
3 m |
3 m |
4 m |
| Pipe Line |
4 Inches (100mm) |
5 Inches (125mm) |
5 Inches (125mm) |
5 Inches (125mm) |
| Turning Radius |
21 m |
21 m |
24 m |
21 m |
| Rotating Angle |
365¡Æ |
365¡Æ |
Free rotation |
Free rotation |
| Power |
380 / 220 V AC3 Phase |
380 / 220 V AC3 Phase |
380 / 220 V AC3 Phase |
220 V Single Phase |
| Operation |
Wireless Remote Controller |
Wireless Remote Controller |
Wired Remote Controller |
Wired Remote Controller |
Amount of
Concrete Flow |
40 ~ 70 m3 / hr |
50 ~ 80 m3 / hr |
50 ~ 80 m3 / hr |
30 ~ 60 m3 / hr |
| Articulation |
Horizontal & vertical |
Horizontal & vertical |
Horizontal & vertical |
Horizontal |
| Lifting |
Lifting by tower crane |
Lifting by tower crane |
Auto climbing system
(Lifting by hydraulic jack) |
Lifting by tower crane |
Major Operation
Methods |

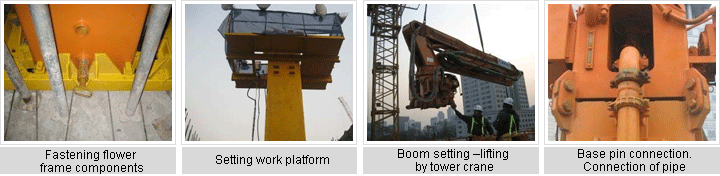

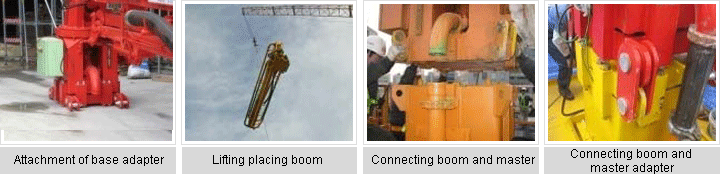

1 Boom 1 Master
1 Boom 2~3 Master
(Boom base movable) |
1 Boom 1 Master
1 Boom 2~3 Master
(Boom base movable) |
1 Boom 1 Master
(Auto Climbing System) |
1 Boom 1 Master
1 Boom 2~3 Master
(Boom base movable) |
