Home > products > SYSTEM SCAFFOLDING

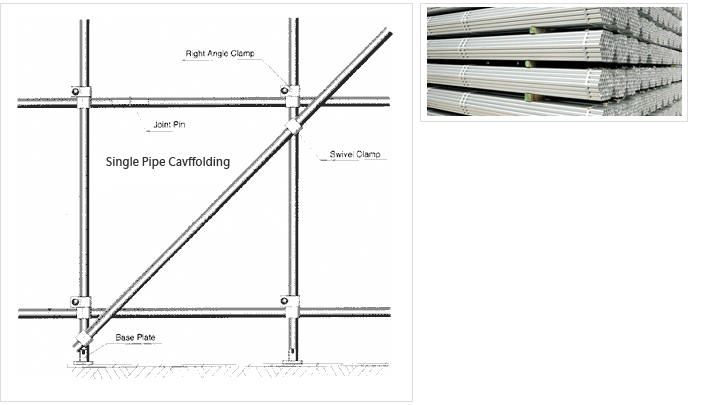

< Steel Pipe Specification for Scaffolding >
Materials KDS 3566 SPS
Dimension Outer Diameter Over 48.3mm
Thickness Over 2.2mm
Weight 2.74 kg/m
Cross Section 3.48 cm2
Section Modulus 3.48 cm2
Moment of Inertia Geometrical Moment of Inertia
Radius of Rotation 1.64 cm
Length (m)
 2      3     4     6
Weight (kg) 5.26  7.89  10.52   15.78

Model Dimensions Weight (kg)

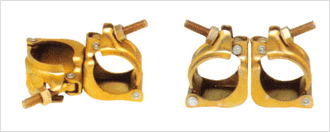

Fixed Clamp
 ¥Õ48.6
 0.68
Auto Clamp
 ¥Õ48.6 0.68

Items Connection Pin (¥Õ48.6)
Weight 0.60kg
Items Jack Base
Weight 1.15kg

Materials Cross Section Weight Length (m)
STK51 (Zinc plating)
200 or higher
 50x50x2THK (t 0.2~0.3)
3kg/m

2
3
4

Materials Cross Section Weight Length (m)
SS400
 50x50x2THK
 2.5kg/m

2
3
4
