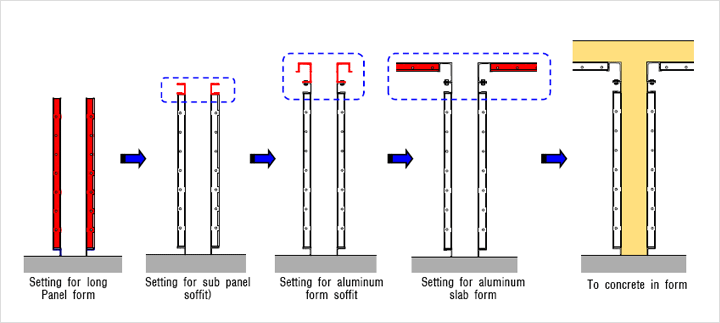

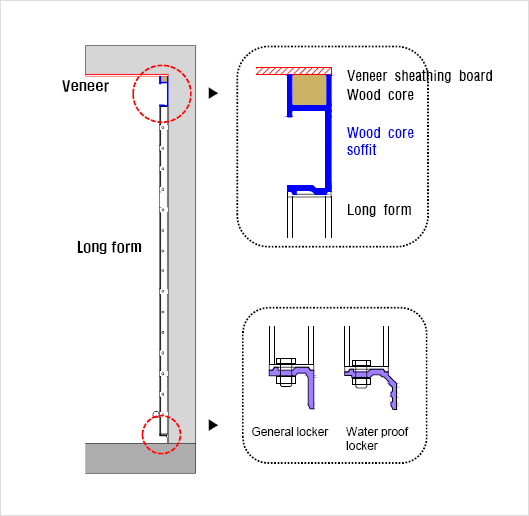

Our system is consisted of basic panel with long-form, and locker for bottom part and support panel to meet wall floor-height for top part, and all these parts will be connected and assembled to make Wall Form.

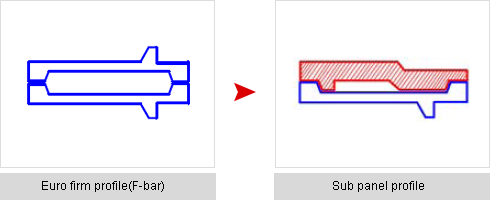

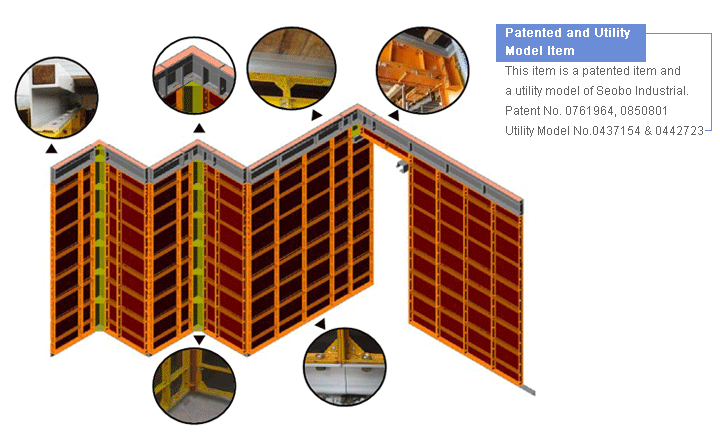

It is a wall form system of new concept, to assemble single support panel on multiple basic panels by raise-groove connection method.

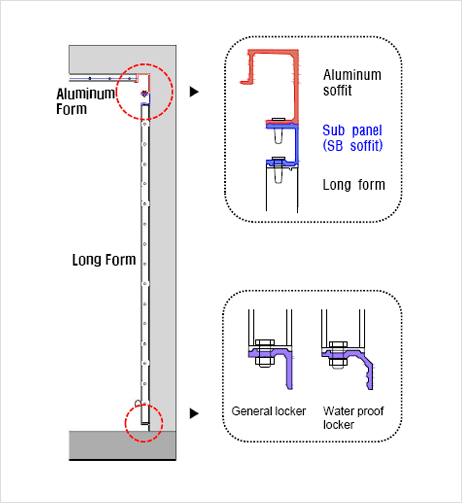

1. Upper support panel and basic panel will be assembled by raise-groove connection, and since this will function as self-support, only parallel support for lower part is needed to be installed.
2. By raise-groove connection method with basic panel and support panel, straightness of form is excellent.
3. Since there is reduced water-suction status, quality of upper molding line become improved.
4. Quantity of support-bar and accessory steel materials needed to be installed are reduced.
5. Installation time can be reduced out of simultaneous process by using integrated long-form and lower locker.

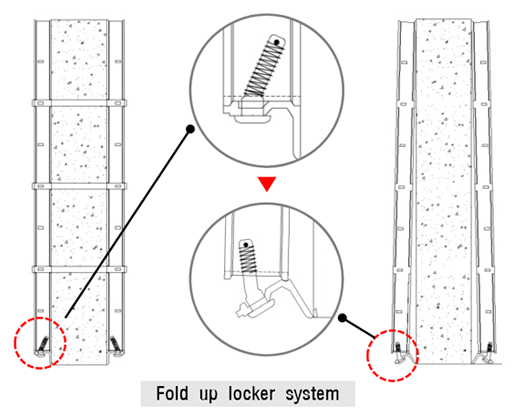

6. At the time of deforming, basic panel will be handled separate from support panel, and thus easy to move.

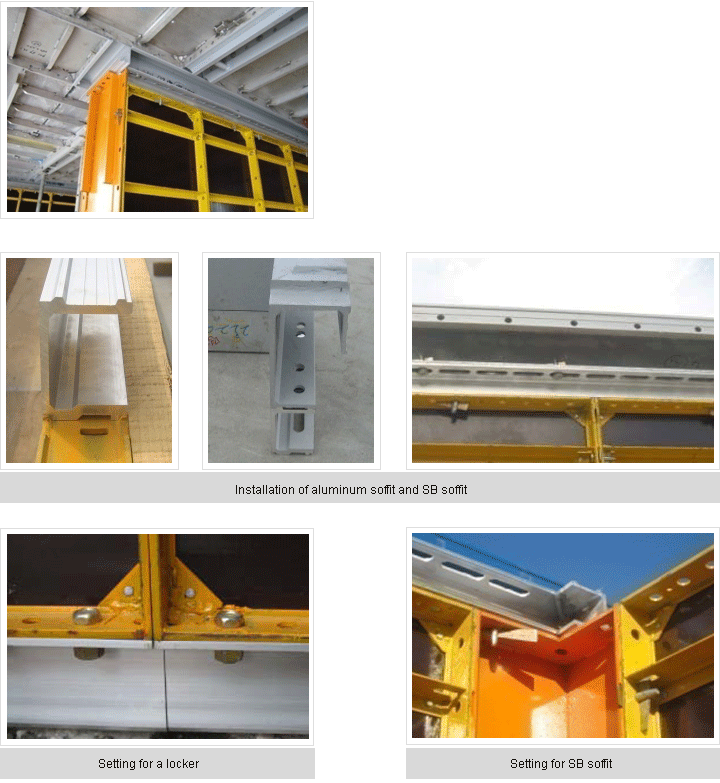

7. Quality of concrete is excellent by using aluminum locker. (water-proof locker).
